General
|
|
Frequency range
|
VHF: 136MHz-174MHz/220-260MHz(Rx/Tx)/
UHF: 400MHz-520MHz(Rx/Tx)
FM ONLY: 65MHz-108MHz
|
|
Memory channels
|
Up to 128 channels
|
|
Frequency stability
|
2.5ppm
|
|
Frequency step
|
2.5/5/6.25/10/12.5/25KHz
|
|
Antenna impedance
|
50 OHM
|
|
Operating temperature
|
-20°C-60°C
|
|
Supply voltage
|
Rechargeable Lithium-Ion 7.4V
|
|
Battery Capacity
|
2800mAh
|
|
Consumption in standby
|
<=75mA
|
|
Consumption in reception
|
380mA
|
|
Consumption in transmission
|
<=1.4A
|
|
Mode of operation
|
Simplex or semi-duplex
|
|
Dimensions
|
110x58x32mm
|
|
Weight
|
130g(approximate)
|
|
Transmitter
|
|
RF power
|
8W/1W
|
|
Modulation type
|
FM
|
|
Emission class
|
16K øF3E/11KøF3E(W/N)
|
|
|
Maximum deviation
|
<=±5KHz/<=±2.5KHz(W/N)
|
|
|
Spurious emission
|
<-60dB
|
|
|
Receiver
|
|
|
Receiver sensitivity
|
0.2µV (at 12 dB SINAD)
|
|
|
Inter modulation
|
60dB
|
|
|
Audio output
|
1000mW
|
|
|
Adjacent channel selectivity
|
65/60dB
|
|
Functions:
1. Dual-Band Display, Tri Frequency. Display, Dual-Standby
2. 128 Channels
3. Built-in VOX Function
4. 1750Hz Brust Tone
5. LED Flashlight
6. Large LCD Display
7. Hight /Low RF Power Switchable
8. Emergency Alert
9. Low Battery Alert
10. Battery Saver
11. Time-out Timer
12. Keypad Lock
13. Monitor Channel
*** Tri-band two way radio Baofeng UV-S9, Frequency range 136-174 / 220-260/ 400-520 MHz,128 Channels,allows the VHF and UHF frequencies.
Tri-color display,dual standby, Programmable PC software,please contact us if you need the software,we will offer you a link to download.
*** BAOFENG UV-S9 special antenna supply a dual band high gain antenna and a 220-260 MHz single band antenna band.
*** Larger Capacity Li-ion Battery Equipped with a 2800mAh Li-ion battery. It is light weight and handy.Simply press PTT key to talk: even at night by switching on the built-in LED flashlight and built-in VOX Function hands-free communication.
*** Please note: our radio is 100% brand new,there is a protective film on the screen,very thin that not easy to find.
Package include:

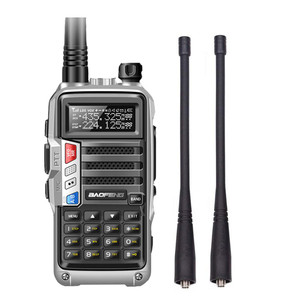

-1x Baofeng UV-S9 Tri-band Walkie Talkie Silver
-2x Antenna (One is Specifically for 220-260Mhz）
-1x 2800mAh Li-ion battery pack
-1x Belt clip
-1x Hand Strap
-1x User's manual
-1x Earphone/Headset for free
-1x Desktop Charger with EU or US Plug
-1x Plug Adapter (We provide it if you need or according to the recipient's address.)
-1x Programming Cable
Not include the usb charger cable & car charger.
