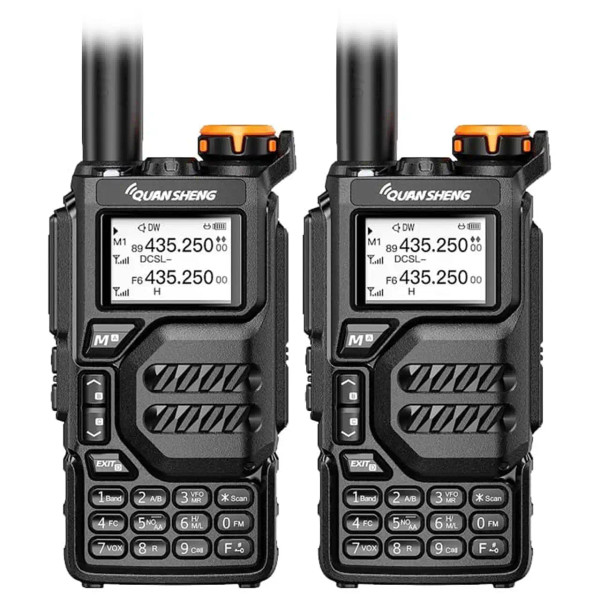

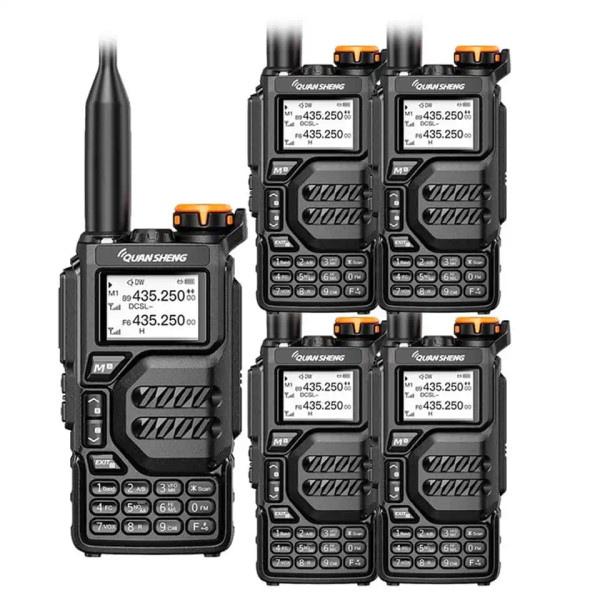

Quansheng UV-K5 Full Band Walkie Talkie | AM UHF VHF Two-Way Radio | Long Range Ham Radio

Quansheng UV-K5 Walkie Talkie 5W Air Band Two Way Radio UHF VHF DTMF FM Scrambler NOAA Wireless Frequency Copy Ham Radio

Main Features :

* UV-K5 multi-band walkie talkie
* One-click frequency matching
* 50-599MHz (ultra-wide frequency reception)
* Three-band transmission and six-band reception
* FM radio
* AM/FM air-band reception
* Cross-band intercom function
* With type-c charging port, it is convenient to use the device whether you stay outdoors, in a car or in a hotel
* With frequency meter (frequency measurement) function
* Wireless frequency replication: The frequency of another walkie-talkie can be quickly copied. Realize batch replication of frequency over the air and quickly build channels
* 200 channels can be saved
* 8 groups of voice can be encrypted (scrambling)
* Multiple scanning and VOX
* Digital signaling CTCSS/DCS
* Automatic/manual emergency alarm
* Receive NOAA weather alerts
* 5W real power
* Display multiple bands, VHF and UHF
* 1600mah polymer lithium-ion battery enables longer standby time. It is able to meet the needs of communication throughout the day. 12 hours of continuous use and 72-hour standby time
* LED flashlight with strong light

• Long Range Communication

Talking Coverage depends on environments,TX power,and battery power.With the help of a repeater,the talking distance will be longer.
Urban Use :1~3km，Outskirts of Use :3~8km，Dessert Land Use :5~8km

• Frog Sound Signal

After the intercom transmission is over the receiver radio sends out a frog sound signal indicating the end of the call.

• Large LCD Display

• Air Band Receiving

• FM/Flashlight Lighting Function
• 1600mAh Rechargable Li-ion Battery

Automatic power saving function to extend battery life

• 10 NOAA Weather Channels

• Fast Copy One Channel

Specifications :

Memory Channel Number : 200
Channel Number for FM Commercial Radio : 20
NOAA Memory Channel Number : 10
Frequency Stability : ±1ppm
Modulation : FM : 11KOF3E(12.5KHz),16K0F3E(25KHz)
Working Temperature ：-20°c~ 60°c
Antenna Impedance :50 euros
Battery capacity ：1600mAh
Reference sensitivity ：
FM(12dB SINAD) F1(50 ∽ 76) -121dBm F2(108 ∽ 135.9975) -121dBm
F3(136∽173.9975) -123dBm
F4(174∽349.9975) -123dBm
F5(350∽399.9975) -123dBm
F6(400∽469.9975) -123dBm
F7(470∽599.9975) - 121dBm
WFM(20dB SINAD) WFM(76∽108) -110dBm AM(10dB S/N) F2(108∽135.9975) -113dBm
Audio Rated : ≥0.5W
Audio Distortion ：≤10%
Transmission ：
Frequency Range :136-173.9975MHz / 400-469.9975MHz
Output Power ： 5W / 4W
Working Current ： ≤1.5A / ≤1.5A
Max.Frequency Deviation ：≤5KHz(25KHz),≤2.5KHz(12.5KHz) /
≤5KHz(25KHz),≤2.5KHz(12.5KHz)
Modulation Distortion ： ≤5% / ≤5%
Spurious Radiation ： ≤7.5uW / ≤7.5uW
Adjacent Ch. Power ：70dB(25KHz),60dB(12.5KHz)/
70dB(25KHz),60dB(12.5KHz)
Inter-modulation ： 40dB / 40dB

Package Includes：

1 x UV-K5 Radio
1 x 1600mah Li-ion Battery
1 x Antenna
1 x Belt Clip
1 x Lanyard
1 x User Manual
1 x charger
