Programming and Operation
Programming can be done manually by entering frequency mode, selecting the band, and setting the frequency before saving to a channel. Alternatively, use Baofeng programming software and programming cable for easier setup. For repeater operation, set the receive frequency (repeater frequency output) and transmit frequency with a frequency shift (positive or negative). Simplex operation uses the same frequency for both transmit and receive, suitable for short-range communication.
Additional Features
Memory channels store specific settings for quick access, allowing same memory channels with identical configurations. Other settings include CTCSS/DCS for filtering signals, transmit power (high at 4W or low at 1W), and reverse mode for swapping frequencies, enhancing flexibility for users.

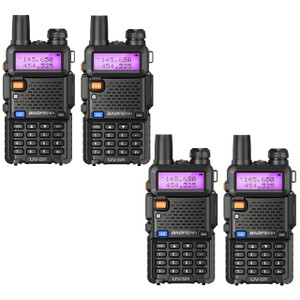

Key Features of Baofeng UV-5R Dual Band Walkie Talkies
The transceiver is a micro-miniature multiband FM transceiver with extensive receive frequency coverage, providing local-area two-way amateur communications along with unmatched monitoring capability
>Earpiece / mic type : Kenwood Plug type
>Antenna : SMA -Female
>Frequency Range: 144-146 / 430-440MHz
>Tri-Color Display, Dual Freq. Display, Dual-Standby
>Output Power: 4 /1Watts
*128 Channels 50 CTCSS and 104 CDCSS
*Built-in VOX Function
*1750Hz Brust Tone
*FM Radio (65.0MHz-108.0MHz)
*LED Flashlight
*Large LCD Display
*High /Low RF Power Switchable
*25KHz/12.5KHz Switchable
*Emergency Alert
*Low Battery Alert
*Battery Saver
*Time-out Timer
*Keypad Lock
*Monitor Channel
*Channel Step: 2.5/5/6.25/10/12.5/25KHz
*ROGER SE
